SPECIFICATIONS

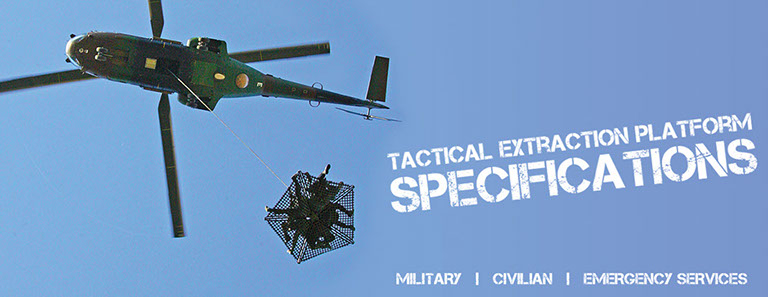

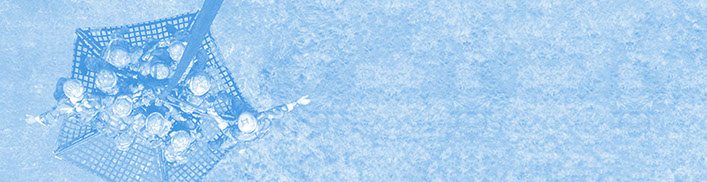

The Tactical Extraction Platform was designed to carry up to 1500Kg  while it’s unique light weight design allows the helicopter to travel up to 180kph with full weight/personnel carriage. Evacuation, deployment and insertion of up to 10 personnel can take less than one minute.



In ocean and aquatic environments, the Tactical Extraction Platform is not affected by rough sea conditions as it’s platform design allows water to easily flow through its base and has a floatation capacity of 40cm (1.3ft) under water level. Designed to the safety specifications of the International Maritime Organisation (IMO), the Tactical Extraction Platform is currently in service on merchant SOLAS (Safety of Life at Sea) ships.



Helicopter Certification

• Bell 412

• Chinook - ch 47

• EC 725

• EH 101

• Mil Mi-17

• Puma SA 330

• Sea King S 61

• Super Frelon

• UH 60 Black Hawk

• Certification can be supplied for all helicopter types





Folded Dimensions

Height:  1.5m (4.9ft)

Diameter: 40cm (1.3ft)



Open Dimensions

Height:  1.5m (4.9ft)

Diameter: 2.9m (9.5ft) 7m2



Weight

Net Weight:  52.6 Kg (115.9 lbs)



Fly Away Kit

1. Main lifting ring

2. Shackle

3. Braking device

4. BK Hook

 5. 25m (82ft) rope

6. Rope bag
